Expanding What's Possible in Architectural Cladding Substructures
Architectural facades continue to evolve and demand more flexibility, greater structural integrity, and smarter installation methods. At Parasoleil, we see this shift every day in how design teams are use patterned metal: larger panel arrays, more technical layouts, and higher performance requirements across commercial projects. ParaClad 100XT, our newest addition to our ParaClad™ Substructure System, was designed and engineered specifically to support today’s more complex, performance-forward cladding designs.
-- WHEN TO SPECIFY PARACLAD 100XT --
Ideal for projects that require:

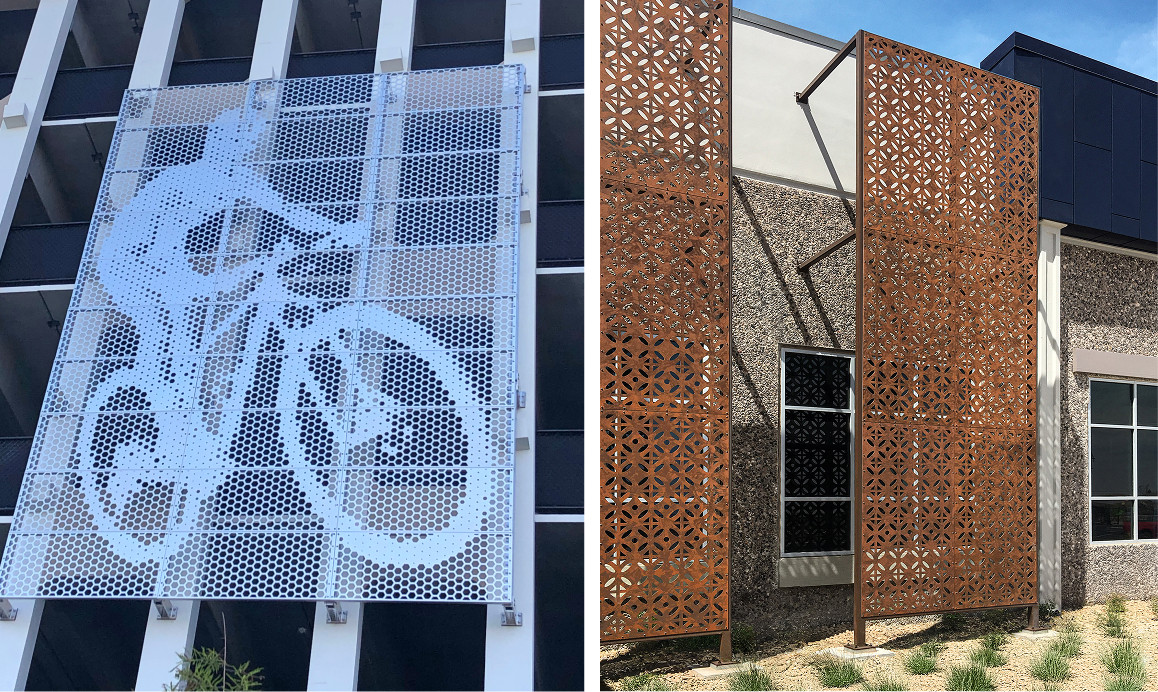

Deep panel offsets for visual depth and shadow play
Space for building systems behind the facade
Cladding solutions for challenging or irregular wall conditions
Higher wind resistance without costly site-built outrigger weldments
ParaClad™ Substructure Data Sheet
Top 5 Cladding Benefits:

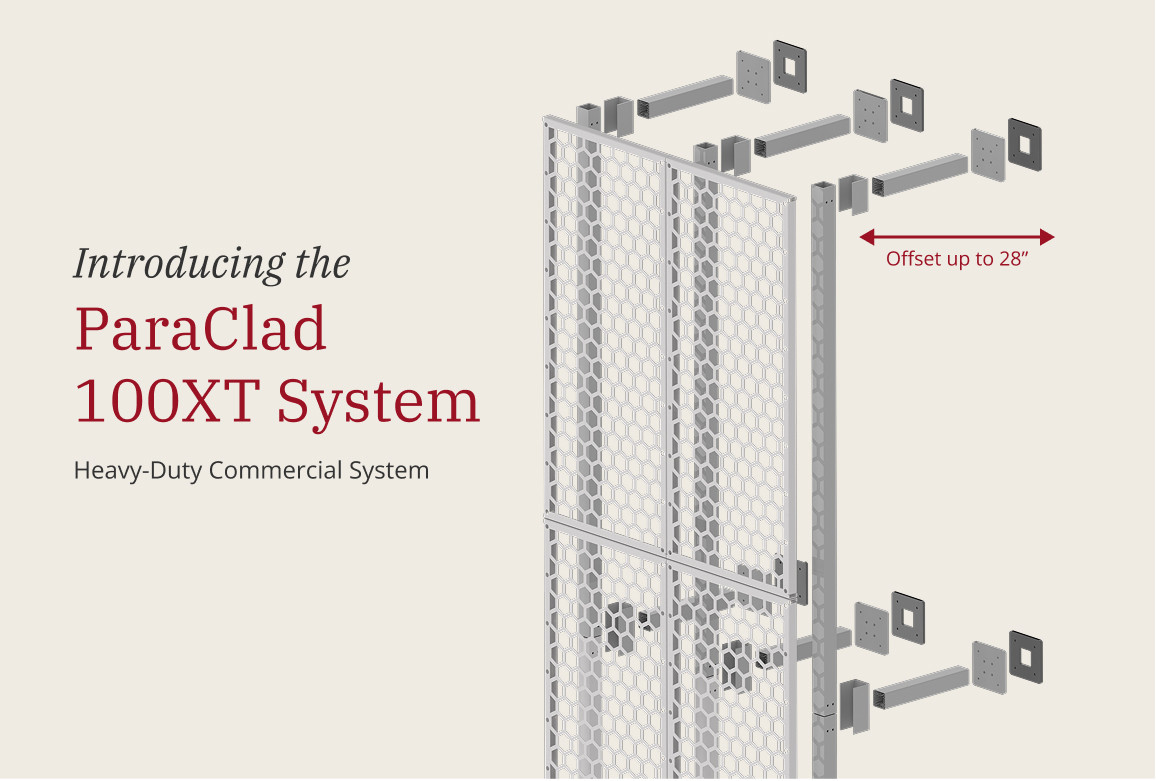

1. Engineered for extended Offsets (up to 28 inches)
Modern facade assemblies often require deeper cavities for proper ventilation, complex conditions, and more dramatic architectural expression. ParaClad 100XT increases allowable offset, giving design teams greater flexibility to integrate:
Ventilated facade requirements
Deep reveals and shadow lines
Complex panel layouts
The result: meets performance and energy code requirements without compromising design intent.
2. Exceptional Strength & Wind Resistance (36 psf ASD)
Large-scale patterned metal panels demand a substructure engineered for real-world environments. ParaClad 100XT is pre-engineered to support:
Taller elevations and larger panel spans
Thicker gauge materials
High-wind or coastal environments
The result: engineering backed confidence that keeps projects on spec and on schedule.
3. Simplified Installation for Consistent Results
Field installation is one of the biggest variables in project performance and budget. ParaClad 100XT reduces that complexity with an advanced bracket design that:
Minimizes or eliminates the need for site-built weldments
Speeds alignment and attachment
Reduces adjustment steps during installation
The result: predictable labor, cleaner installs, and fewer field-built structural elements.
TOP 5 benefits (continued):
4. Reduced Solar Heat Gain for Better Building Performance
Extended offsets create functional space between glazing and patterned screens, allowing the system to reduce solar heat gain without compromising transparency or aesthetics. This added depth supports:
Improved thermal performance and reduced cooling demand
Increased occupant comfort by limiting direct solar exposure
Daylight preservation with filtered, diffused light
The result: enhanced energy efficiency while maintaining visibility, daylight, and architectural intent.
5. Adaptable to Complex Conditions
Every building surface introduces different challenges. ParaClad 100XT is designed to perform across a wide range of building conditions, including:
Irregular or uneven walls and substrate inconsistencies
Retrofits and remodels
Existing penetrations or mechanical conflicts
The result: a forgiving, versatile system that adapts to conditions instead of forcing design compromises.
Smart Solutions for Designers and Builders
Whether you’re working on a large public building or a commercial façade that demands both beauty and performance, ParaClad 100XT expands what’s possible with Parasoleil’s systemized approach to architectural cladding.
Interested in adding ParaClad 100XT to your next project?
Visit our ParaClad Cladding System page to explore all ParaClad system options and connect with our team (hello@parasoleil.com) for design or engineering guidance, spec support, or project review.
