Screen Systems

Create a Visual Statement with Patterned Privacy Screens

Whether you are looking to define a space, direct the flow of traffic, hide an area on your project site, create privacy, or provide a landscape background, nothing enhances a site like a Parasoleil Screen System. Order the panels by themselves or select a fully pre-engineered system for your rooftop amenity space, healing garden, or pool deck with the confidence that your Parasoleil system will not only look incredible, but will be engineered to exceed all necessary codes and building department requirements.

Screen System Options High Wind-Rated screening solutions with attention to detail

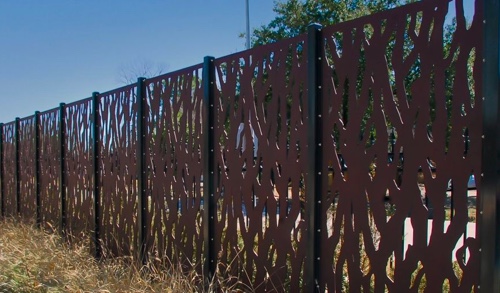

Example of a Parasoleil™ Eclipse Series™ – Lunar Screen System

Eclipse Series™ – Lunar Screen System

Designed to withstand up to 165 mph winds in cities and urban areas, these screen systems are engineered to last. Four feet wide 0.25 inch thick aluminum panels are suspended between tube steel posts using Parasoleil’s proprietary and patented PBI bracket system allowing for ease of installation, field tolerances, and simple mechanical assembly. The steel baseplates can be bolted directly to above grade or below grade concrete footers, depending on the site conditions and desired design aesthetic. Making a custom design statement with a pre-engineered screen system has never been easier.

Design Guide for Screen Systems Download →
Configure Your Commercial Screen System →

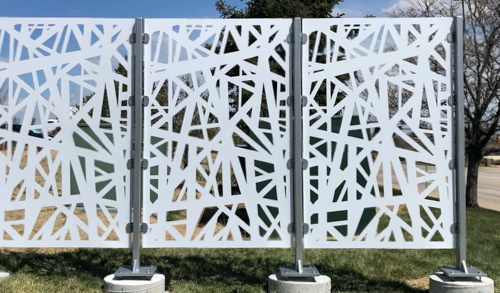

Example of a Parasoleil™ Equinox Series™ – Lunar Screen System

Equinox Series™ – Lunar Screen System

The Equinox Series™ of screens are ideal for ground level, commercial installations that do not require the design load requirements of over 25 lbs per square foot. These systems can be installed with a variety of fastening options to achieve varying design aesthetics, from face mounted solutions, to stand-off solutions with nearly invisible matching fasteners. When a commercial project doesn’t require the high design loads of a coastal, suburban, rooftop hurricane zone, it will likely still need structural calculations to comply with local code requirements. The Equinox Series™ screen system is the key.

Design Guide for Screen Systems Download →
Configure Your Commercial Screen System →
Example of a Parasoleil™ Custom System

Custom System

Sometimes, rectangles won’t quite do for your project. Or maybe you have an extremely unique fastening condition that requires a custom footing design. Or maybe you want to push the boundaries of your project with extra high posts and extra long, curved panel spans. Whatever you may be scheming up, Parasoleil has the right experience, desire, and people to help you make it a reality. When your project calls for that extra effort, and you are looking to blur the line between art and architectural products, we’re the team for you.

Custom Design Process Brochure Download →

Fastening & Installation Details

More info

PBI SERIES HARDWARE – INSET MOUNT

The PBI Bracket combines beauty, utility, and durability to offer an elegant installation solution for a wide range of projects. It is an expressed element that standardizes the installation process, increases corrosion resistance and enhances the overall aesthetic of the installation. The PBI bracket comes in any of the three Parasoleil standard frame finishes and is most aesthetically pleasing when matched to the post color.

PBI Data Sheet Download →

Direct Mount Hardware

As simple and straightforward as it gets. Parasoleil provides the appropriate screw for your project based on your substrate material whether that be wood, aluminum, commercial grade steel, or something else. All screw heads come painted to color coordinate with the panel finish. Panels come with pre-drilled holes for even spacing and ease of installation. Select from PDH, PDS, PDW depending on your post material and desired aesthetic. All fasteners will come painted in the color that best coordinates with the selected panel powdercoat finish.

Direct Mount Fastener Data Sheet Download →

PSO SERIES HARDWARE - STANDOFF MOUNT

These brackets, designed for any vertical panel mounting situation, give you the ultimate in field tolerance with the cleanest panel face aesthetic available. Chose from a button-head tamper resistant fastener or a counter-sunk flush mount Philips head fastener. These brackets hold the panels two inches off of the posts for a floating effect. All screw heads will be painted in the color that best coordinate with the selected panel powdercoat finish for a clean and seamless final appearance.

PSO Data Sheet Download →

PFL SERIES HARDWARE - FLUSH MOUNT

These brackets, designed for both vertical and horizontal panel application, gives you the same field tolerance as the offset mounting bracket system, but with a closer connection between the panel and the post. The brackets provide PEM studs to “hang” the panels on, which are then capped with painted acorn nuts for an expressed fastener aesthetic.

PFL Data Sheet Download →

See our Screen Systems in use

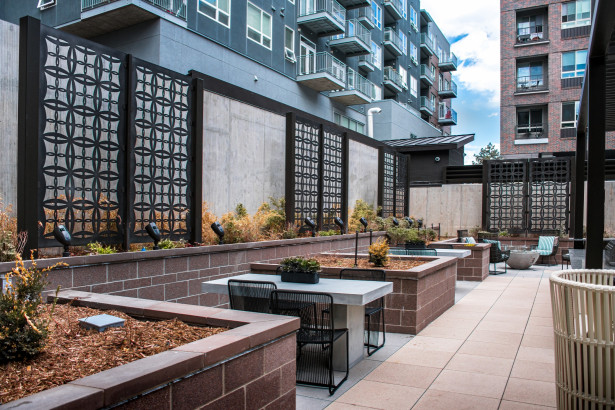

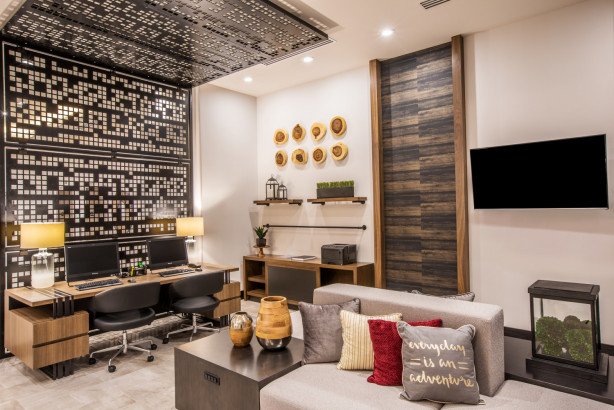

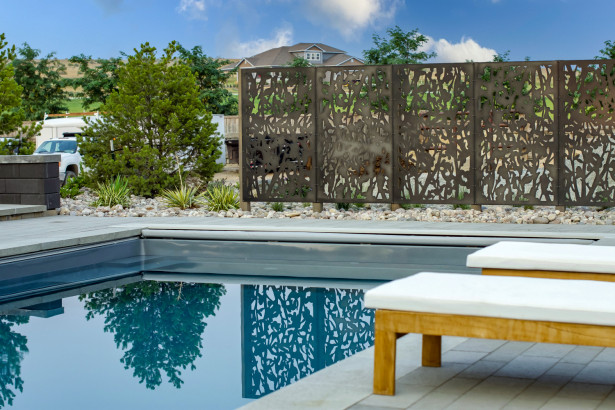

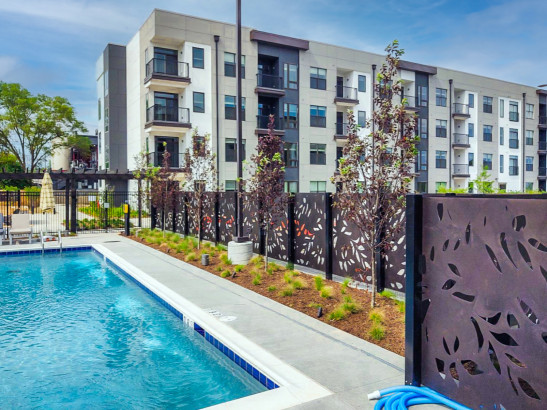

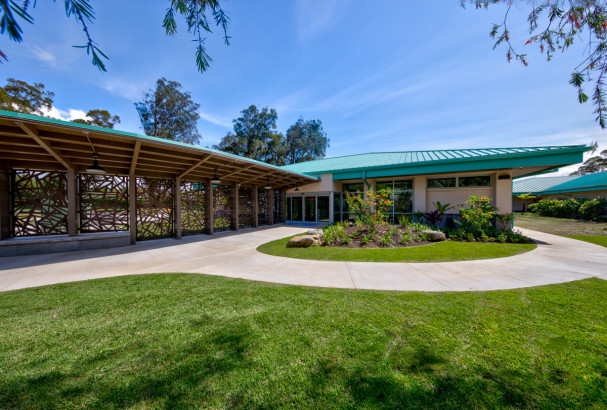

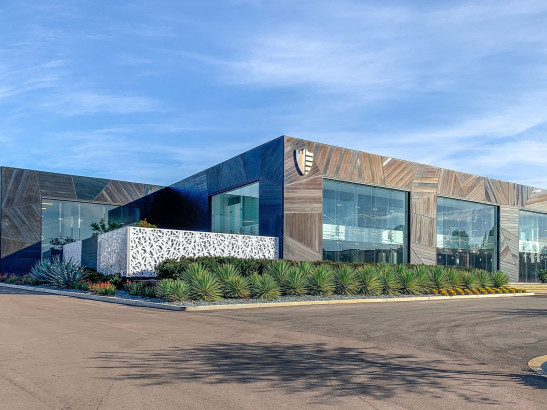

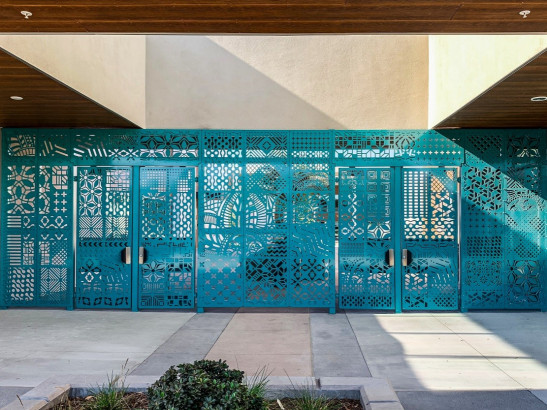

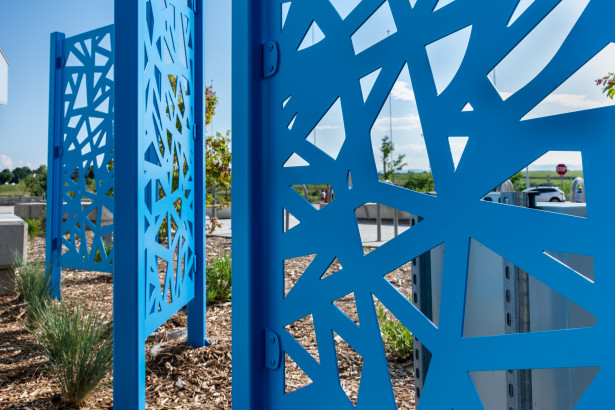

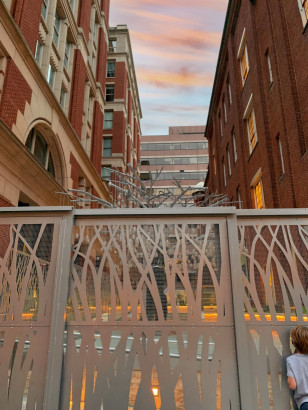

Parasoleil™ panels in a real-world application

Configure Your Commercial Screen System

Use the following options to configure your ready-to-go screen system.

Parasoleil has a pattern for every need

Every pattern is unique in its ability to provide shade, visual privacy, protection from the elements, and enhance a design aesthetic. Make sure you're well versed on the different pattern attributes so you can be sure that you're picking the perfect pattern for your project!

More about pattern library →

Request a quote for your project

Let's get going! You know what you want so now it's time to move - tell us as much as you can about what you're working on, and we can start putting some numbers together for you and dialing in your project. We look forward to working with you!
